AI CRC Card Diagram Generator: Visual Paradigm Product Update

We are excited to announce a major enhancement to the Visual Paradigm AI Diagramming Chatbot: full support for the instant generation of CRC Card Diagrams. As object-oriented analysis and software design evolve, having a rapid, conversational way to map out classes, responsibilities, and collaborators is critical. With this update, software architects, system analysts, and agile teams can go from a simple natural language prompt to a fully structured, PlantUML-based CRC Card Diagram in seconds.

Whether you are designing a brand-new module or documenting a legacy architecture, our AI CRC Card Diagram tool simplifies object-oriented design and eliminates the setup friction usually associated with modeling software systems.

What Is a CRC Card Diagram and Why Does It Matter?

CRC stands for Class-Responsibility-Collaborator. Introduced as a lightweight object-oriented brainstorming tool, CRC cards help developers focus on the core obligations of a system component rather than getting bogged down in low-level code implementation details:

Class: Represents a key collection of similar objects or domain entities within your system.
Responsibilities: High-level duties, behaviors, or knowledge that the class maintains.
Collaborators: Other classes that this class must interact with to perform its obligations.

Traditional CRC sessions involved physical index cards on a whiteboard—a great exercise for human collaboration, but difficult to record, maintain, or integrate into modern software engineering workflows. By introducing an AI CRC Card Diagram generator, Visual Paradigm combines the rapid brainstorming nature of classic CRC cards with the precision of AI-driven model creation.

How the AI CRC Card Diagram Tool Works

Using the AI Diagramming Chatbot is as straightforward as describing what you need in plain English. For instance, if you submit the prompt:

“Generate a CRC Card Diagram for a hospital patient tracking system.”

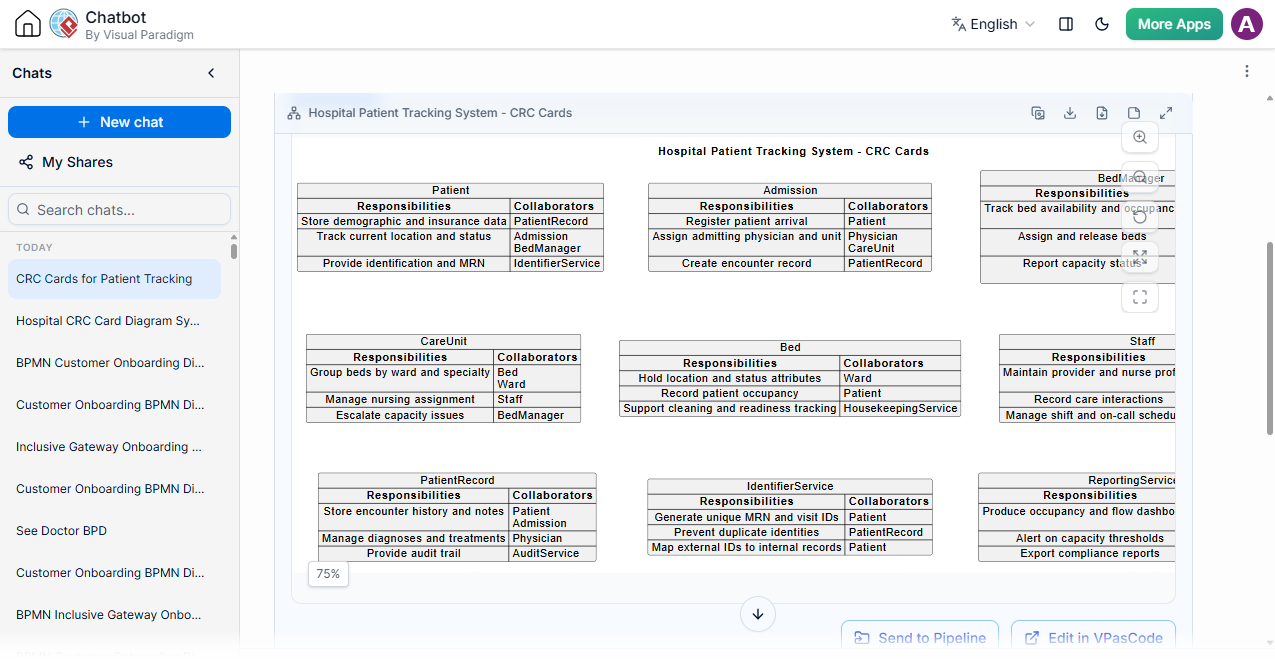

The chatbot processes the request using domain-trained models and outputs structured PlantUML code alongside an interactive image view. It also generates detailed explanations to help you evaluate class allocations and responsibilities right away.

Example Chatbot Output

Here is an example of what the chatbot generates for a patient tracking system:

Plantuml Edit Plantuml in VPasCode

@startuml
skinparam {
  vpDiagramType CRCCardDiagram
}
title Hospital Patient Tracking System - CRC Cards

map "Patient" as Patient {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Store demographic and insurance data => PatientRecord
  Track current location and status => Admission\nBedManager
  Provide identification and MRN => IdentifierService
}

map "Admission" as Admission {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Register patient arrival => Patient
  Assign admitting physician and unit => Physician\nCareUnit
  Create encounter record => PatientRecord
}

map "BedManager" as BedManager {
  <b>Responsibilities</b> => <b&gt;Collaborators</b>
  Track bed availability and occupancy => Bed\nWard
  Assign and release beds => Admission\nBed
  Report capacity status => Ward\nReportingService
}

map "CareUnit" as CareUnit {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Group beds by ward and specialty => Bed\nWard
  Manage nursing assignment => Staff
  Escalate capacity issues => BedManager
}

map "Bed" as Bed {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Hold location and status attributes => Ward
  Record patient occupancy => Patient
  Support cleaning and readiness tracking => HousekeepingService
}

map "Staff" as Staff {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Maintain provider and nurse profiles => Role\nDepartment
  Record care interactions => PatientRecord
  Manage shift and on-call schedules => ShiftService
}

map "PatientRecord" as PatientRecord {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Store encounter history and notes => Patient\nAdmission
  Manage diagnoses and treatments => Physician
  Provide audit trail => AuditService
}

map "IdentifierService" as IdentifierService {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Generate unique MRN and visit IDs => Patient
  Prevent duplicate identities => PatientRecord
  Map external IDs to internal records => Patient
}

map "ReportingService" as ReportingService {
  <b>Responsibilities</b> => <b>Collaborators</b>
  Produce occupancy and flow dashboards => BedManager\nAdmission
  Alert on capacity thresholds => CareUnit
  Export compliance reports => AuditService
}

Patient -[hidden]right-> Admission
Admission -[hidden]right-> BedManager
Patient -[hidden]down-> CareUnit
Admission -[hidden]down-> Bed
BedManager -[hidden]down-> Staff
CareUnit -[hidden]right-> Bed
Bed -[hidden]right-> Staff
CareUnit -[hidden]down-> PatientRecord
Bed -[hidden]down-> IdentifierService
Staff -[hidden]down-> ReportingService
PatientRecord -[hidden]right-> IdentifierService
IdentifierService -[hidden]right-> ReportingService

@uml

Edit Plantuml in VPasCode

Explore the interactive CRC Card Diagram live chat session here.

Key Benefits of Generating CRC Cards with AI

Reduced Coupling & Single Responsibility: By inspecting the responsibilities and collaborators side-by-side, software engineering teams can quickly identify overloaded classes before writing code.
Conversational Refinement: If a generated class carries too many responsibilities, you can ask the chatbot to split the class, extract a service, or reassign duties in natural language.
Instant Architectural Explanations: Beyond code generation, the chatbot outlines the rationale behind the design, ensuring team members understand the system architecture.
Text-Based Open Standard: Built on top of PlantUML, your CRC cards remain editable, human-readable, and version-controllable.

Seamless Integration with the Visual Paradigm AI Ecosystem

Generating a diagram is only the first step. The true strength of the AI CRC Card Diagram generator lies in its deep integration across the Visual Paradigm product ecosystem:

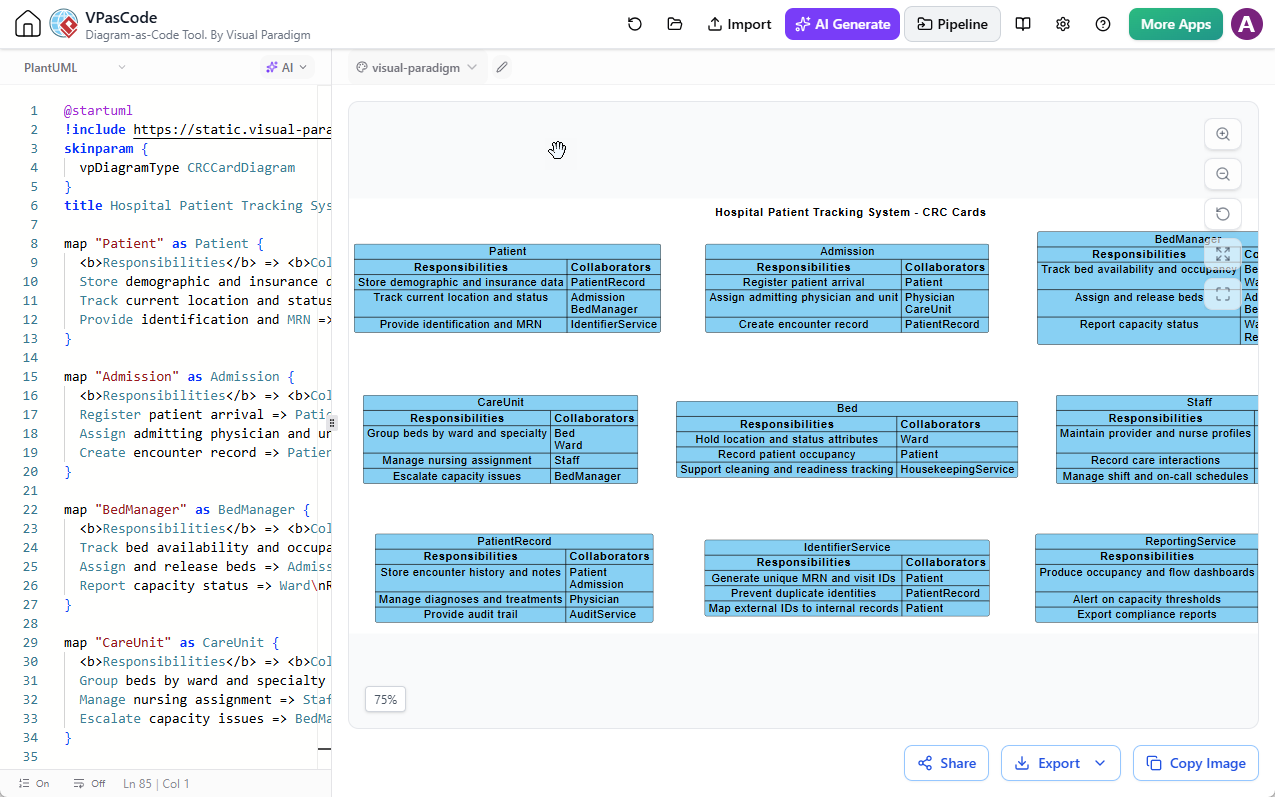

VPasCode Fine-Tuning: Edit and tweak generated PlantUML code directly inside Visual Paradigm VPasCode for precise adjustments.

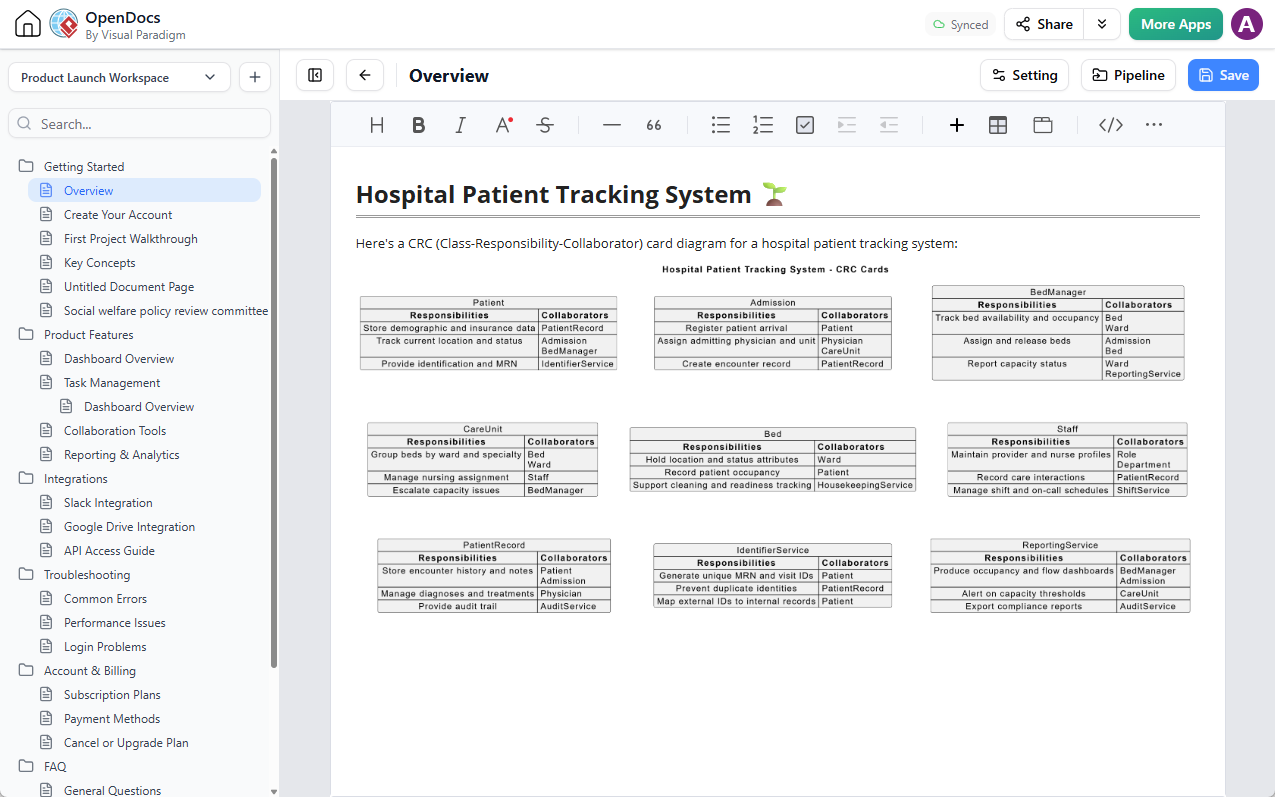

OpenDocs Integration: Push diagrams into project pipelines and embed them directly into technical documentation using Visual Paradigm OpenDocs.

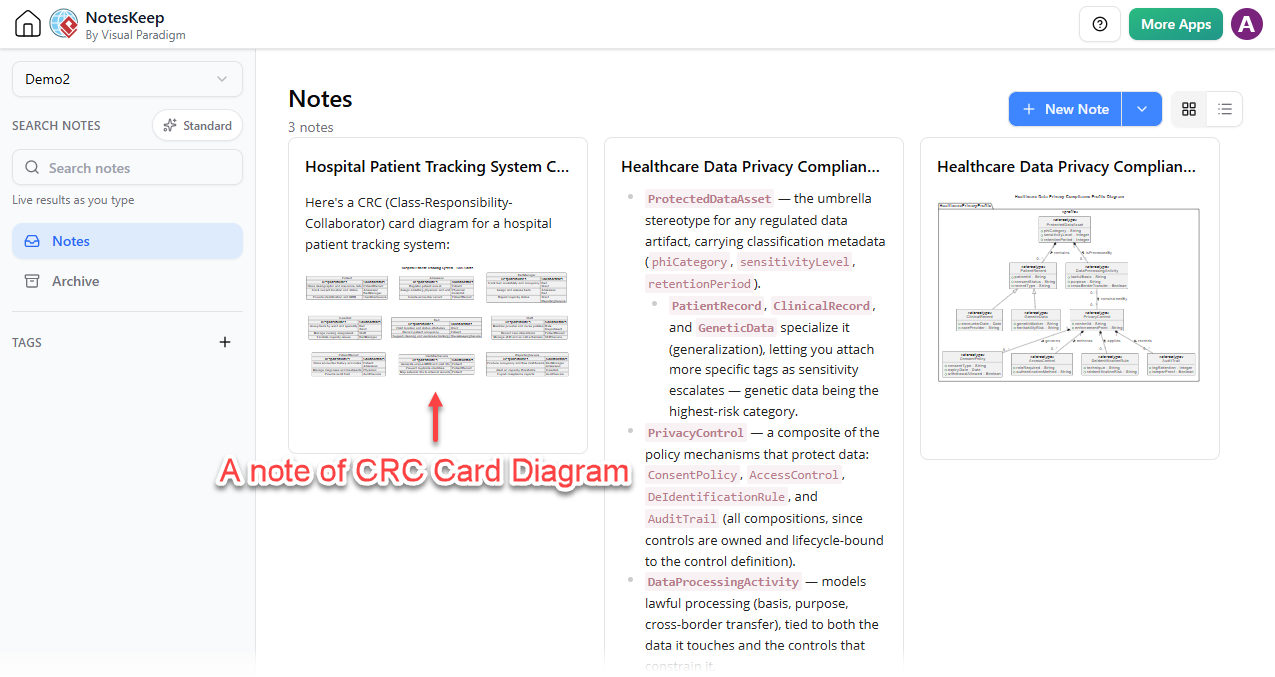

NotesKeep Knowledge Capture: Save key explanations, code blocks, or specific chat segments into Visual Paradigm NotesKeep to serve as ground truth for future architectural decisions or team Q&A sessions.
Multi-Format Export: Export your diagrams as high-resolution PNGs or SVG vector graphics for technical presentations, design reviews, or external reports.

Try the AI CRC Card Diagram Generator Today

Accelerate your software architecture and object-oriented modeling with AI assistance. Experience how fast natural language prompts can turn into structured, actionable domain models.

Launch the Visual Paradigm AI Diagramming Chatbot and Create Your CRC Card Diagram Now
